How to Grind and Polish Concrete Edges Efficiently
Concrete floor preparation has come a long way. Contractors today can efficiently grind and polish large open areas with planetary grinders and polishing systems. But one challenge remains on nearly every project:
the edges.
Walls, columns, tight spaces, and vertical surfaces often require switching tools, getting on your knees with a hand grinder, or accepting inconsistent finishes. The result is lost time, inconsistent results, and unnecessary operator fatigue. The good news is that edge work doesn’t have to slow down your project.
Why Edge Grinding Is One of the Hardest Parts of Concrete Prep
Whether you’re preparing a slab for coatings or polishing a decorative concrete floor, edges introduce several complications:
- Limited access near walls and vertical surfaces
- Inconsistent grinding pressure with handheld tools
- Operator fatigue from crouching or kneeling
- Transition lines between edges and the main floor
Traditional hand grinders can solve the access problem, but they often create another problem, inconsistent surface preparation and slower production.
That’s where purpose-built edge grinding equipment comes in.
The Role of a Stand-up Edge Grinder

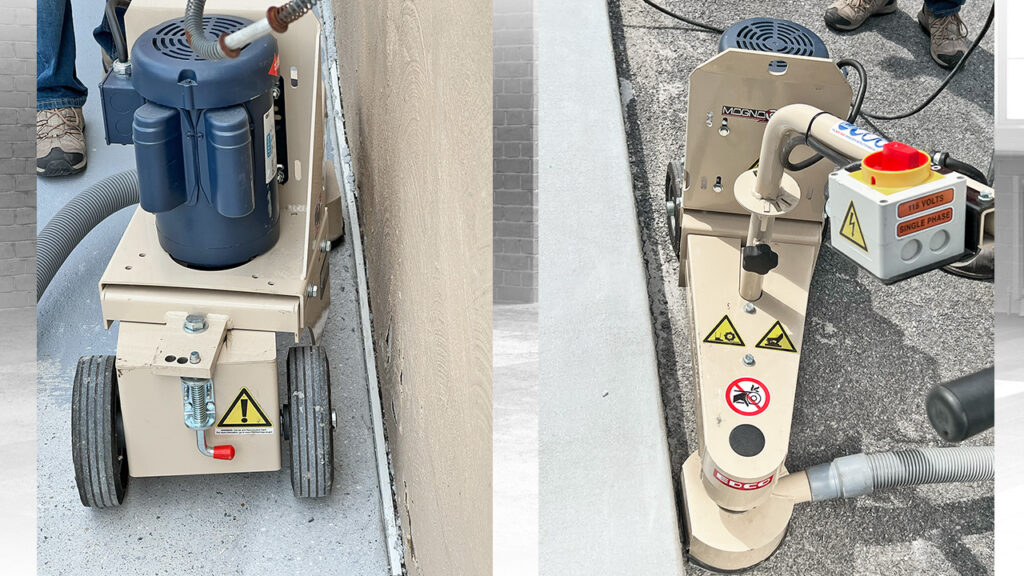

A stand-up edge grinder bridges the gap between handheld tools and full-size floor grinders. Machines like the EDCO TMC-7 Turbo Edge Grinder are specifically designed to address the problem areas contractors encounter around the perimeter of a jobsite.

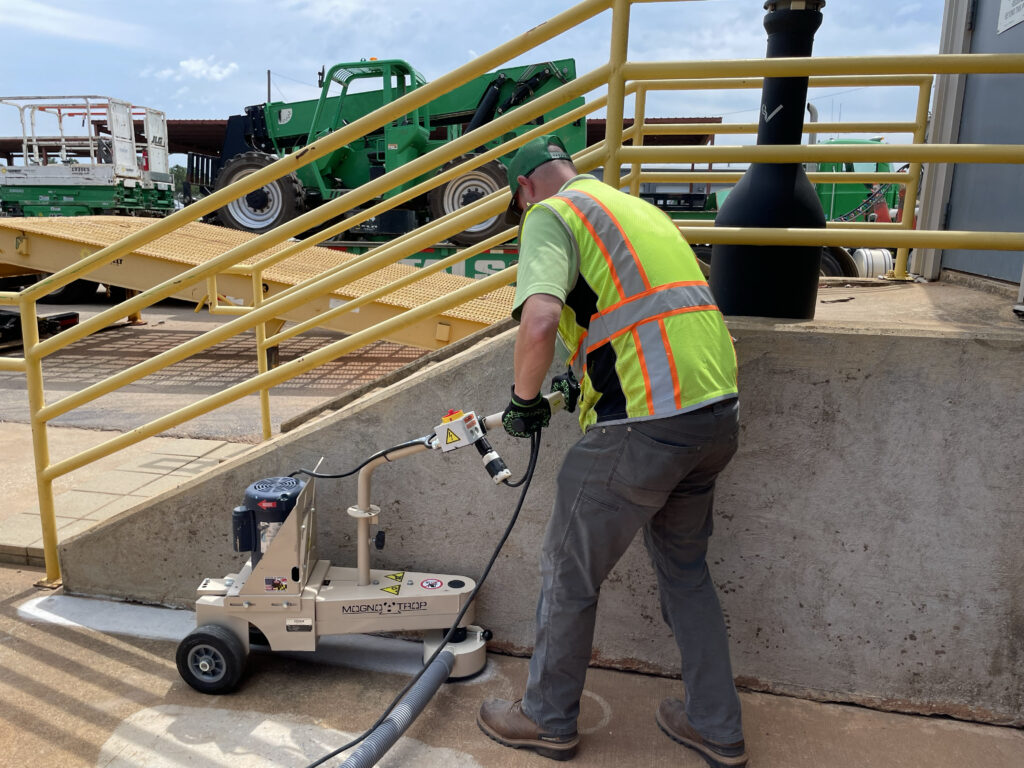

Instead of grinding by hand, operators can stay upright while maintaining controlled, consistent pressure across the grinding surface. The compact design allows the machine to work along vertical surfaces, under obstacles, and in tight areas where larger grinders simply can’t reach.
Designed for Edges, Built for Control
The TMC-7 incorporates several mechanical adjustments that help contractors maintain control and reach difficult areas.
Key design features include:
- Three-position adjusting axle allowing left, right, or straight grinding angles for improved edge access.
- Four-position dust shroud that allows grinding flush against vertical surfaces.
- Multiple handle positions so operators can control grinding pressure from different working positions.
- Compact frame design that fits tight spaces around columns, walls, and obstacles.
Together, these adjustments allow contractors to grind closer to the edge of a slab while maintaining control and consistent contact with the surface.
From Grinding to Polishing: One Machine, More Capability
Edge grinding has traditionally required separate equipment for polishing. But with the addition of 7-inch polishing disc adapters and resin polishing pads, the TMC-7 can now move beyond aggressive grinding into precision edge finishing.
Contractors can transition from surface prep to polishing using the same machine, making it easier to match the finish achieved with larger planetary grinders on the main floor.
When paired with EDCO 7″ resin polishing pads ranging from 50 to 3000 grit, operators can progressively refine edges and corners to achieve a smooth, high-gloss polished concrete finish.
This capability helps eliminate the visible transition line that often occurs between edge work and the main slab.

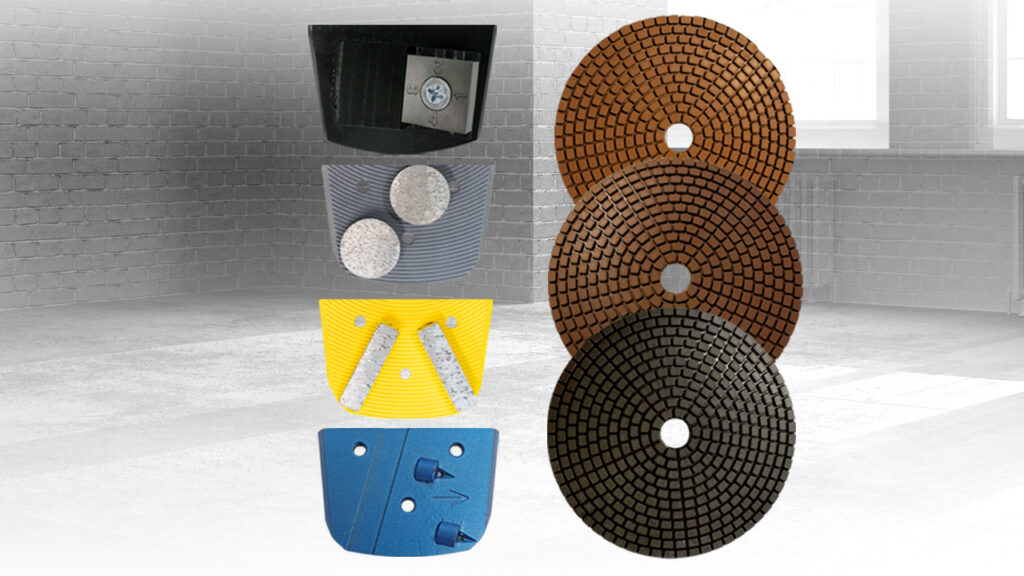

Tooling Matters: Choosing the Right Setup for the Job
As with any surface preparation equipment, tooling selection determines the outcome.
Contractors commonly use different Magna-Trap tooling depending on the application:
Strip:
Tooling designed for removing coatings, adhesives, mastics, and surface build-ups.
(recommended for low speed grinders)
Grind:
Diamond tooling that levels high spots, smooths concrete surfaces, and prepares floors for coatings.
Remove:
PCD or specialty segments designed for industrial coatings, thick epoxies, and membrane removal.
Polish:
Resin polishing pads used in progressive grits to achieve decorative or high-gloss finishes.
Matching the right tooling to the task ensures faster production, improved finish quality, and longer tool life.
Applications Where Stand-up Edge Grinders Make the Biggest Impact
Stand-up edge grinders are especially valuable in projects that require precise surface preparation or consistent polished finishes.
Common applications include:
- Polished concrete edge finishing
- Surface preparation before coatings
- Removing adhesives, mastics, and coatings
- Grinding expansion joints and high spots
- Working around columns, walls, and equipment
- Preparing vertical surfaces and tight spaces
In these scenarios, stand-up edge grinders help maintain consistent results while reducing reliance on handheld tools.
Dust Control Still Matters
Concrete grinding generates respirable silica dust, making proper dust control essential for both safety and productivity. Pairing an edge grinder with a compatible industrial vacuum system helps capture airborne dust at the source and maintain a cleaner work environment.
Integrated vacuum ports and proper filtration systems are key components of an effective dust control setup.
A Smarter Approach to Edge Work
Edges will always be one of the most challenging parts of any concrete floor project. But with the right equipment and tooling combination, contractors can eliminate much of the frustration associated with perimeter work.
A stand-up edge grinder helps:
- Improve consistency between edges and the main floor
- Reduce operator fatigue from handheld grinding
- Increase productivity on detailed work
- Deliver professional results in tight spaces
For contractors focused on efficient surface preparation and polished concrete finishing, solving the edge problem is often the key to improving overall jobsite performance.
What is an edge grinder used for?
An edge grinder is used to grind or polish concrete along walls, corners, and tight spaces where larger floor grinders cannot reach.
Can you polish concrete edges with the same machine used for grinding?
Yes. With the addition of polishing adapters and resin pads, some edge grinders can transition from grinding to polishing edges.
Why are edges harder to grind than open floors?
Edges restrict machine access and often require handheld tools, which makes it harder to maintain consistent grinding pressure.
